NC-3000P
Portable Multi-currency Banknote Counter
NC3000 Portable Version, the most intelligent and reliable one pocket banknote counter.
NC3000 Portable Version applies the advanced multi-detection technology from MA which provides good acceptance rate on genuine notes and catches unqualified ones with high accuracy and efficiency. The full numeric key panel on the NC3000 Portable Version gives users flexibility to set desired batch numbers and the combined functional keys provides an easier configuration setup.
NC3000 Portable Version has various and useful counting modes which keep up with growing customers demands for present-day. The unique clam-shell bill path technology assists an easier daily maintenance and jam removal. With 2.8 inch true graphic LCD and user-friendly interface, the device delivers smooth and easy process of daily banknote handling job.
NC3000 Portable version equipped with Lithium battery, allows user to count banknotes without AC power source for 100,000 notes, with connectivity to Android and rechargeable printer, it completes the mobile banknote handling solution.
|
|
|
|
|
|
FEATURES
-
Portable
With rechargeable battery and handle, can be used anywhere.
-
Multi Currency
Up to 5 currencies
-
LCD Display
2.8 inch graphic LCD
-
SD Card Upgrade
Software upgrade by SD Card.
-
Accurate
Linear sensor and image processing technology.
-

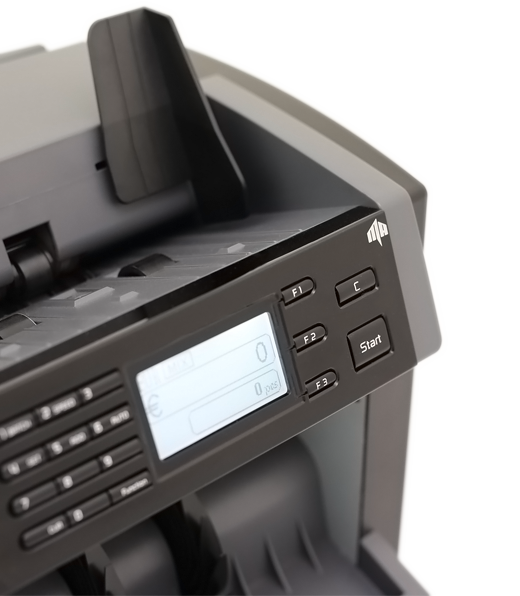

User Friendly
Full numeric key panel gives flexibility to set desired batch numbers and the combined functional keys provides an easier configuration setup.
-

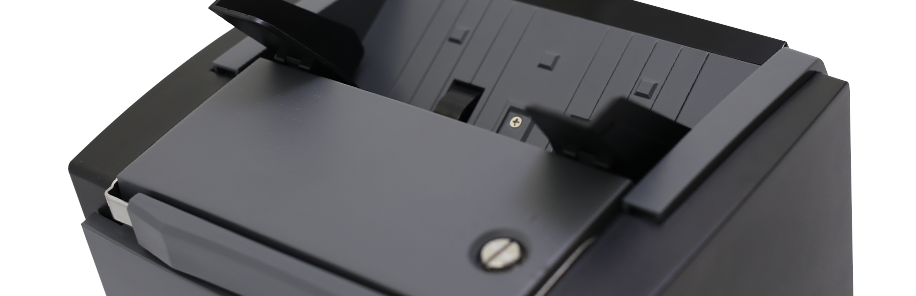

Easy Maintenance
Unique clam-shell bill path technology provides easy jam removal and routine service maintaining work
SPECIFICATIONS
-
Feeding System
Roller Friction System
-
Counterfeit Detection
Magnetic, Infrared, Ultraviolet, and 3D.
-
Count Mode
Count, Mix, DD
-
Max. Currency
5
-
Hopper Capacity
Max. 500 notes
-

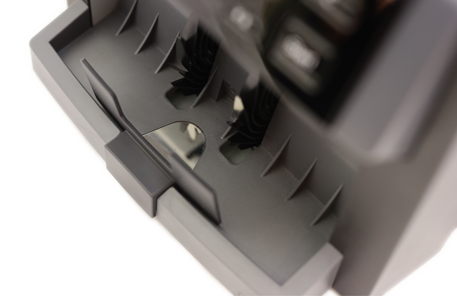

Stacker Pocket Capacity
Max. 250 notes
-
Countable Note Size
60 x 85 x 0.08 mm - 100 x 190 x 0.12 mm
-
Display
2.8 Inch Graphic LCD
-
Power Supply
100-240V, 50/60Hz
-
Power Consumption
Max. 40W
-
Dimensions (mm)
285 (W) x 270 (D) x 245 (H)
-
Weight
7.7 kg
-
Interface
RS-232
PC Connection Interface (USB)
SD Card
Remote Display -
Battery
3100mAh, 18V Li-Ion batteries
-
Optional Accessory
Remote Display
Thermal Printer -
Available Currencies
Please contact MA or a MA authorized dealer.
Up to 5. -
Counting Speed
900 / 1000 / 1300 Note/Min.(Detection off)
600 / 900 / 1000 Note/Min.(Detection on)
