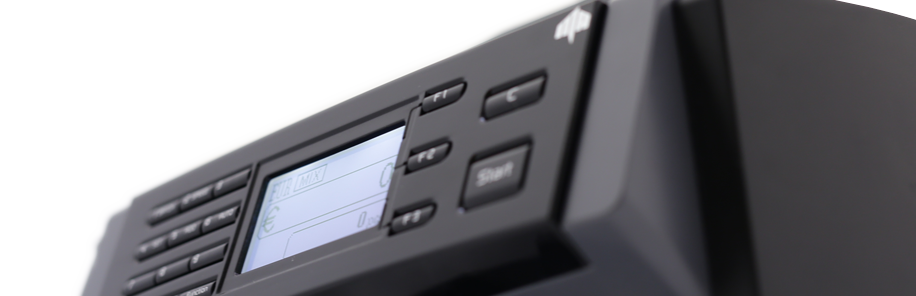

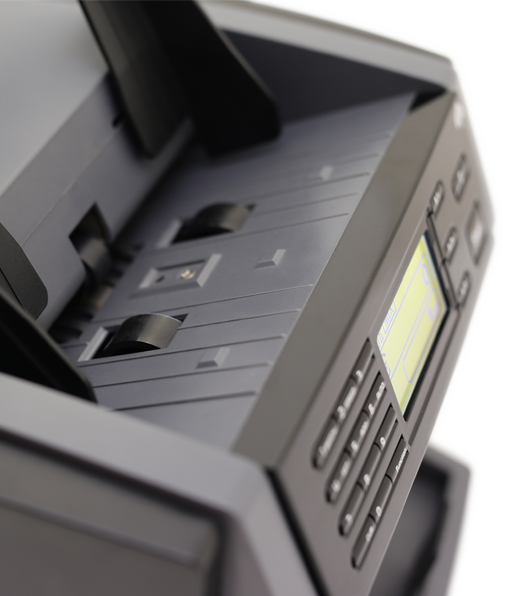

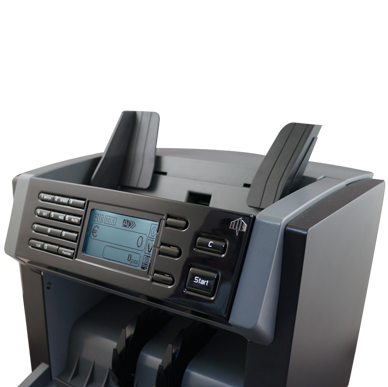

NC-3000
Multi-currency Banknote Counter
Masterwork NC Series banknote discriminators are the most intelligent and reliable banknote counters which apply optical inspection and use image processing technology to recognize bills and to discriminate denominations.
NC3000 applies our advanced multi-detection technology which brings good acceptance rate and also stops counterfeits with high accuracy. It has various and useful counting modes and functions to keep up with growing customers demand for present-day.
Unique clam-shell bill path technology assists users with removing jam or dirt easily. With 2.8 inch true graphic LCD and user-friendly interface, NC3000 delivers smooth and easy process of daily banknote handling job to all the users.
|
|
|
|
|
|
FEATURES
-
Multi Currency
Up to 5 currencies
-
LCD Display
2.8 inch graphic LCD with Graphic based User Interface
-
SD Card Upgrade
Software upgrade by SD Card.
-
Accurate
Linear sensor and image processing technology.
-
User Friendly
Full numeric key panel gives flexibility to set desired batch numbers and the combined functional keys provides an easier configuration setup.
-
Easy Maintenance
Unique clam-shell bill path technology provides easy jam removal and routine service maintaining work
SPECIFICATIONS
-
Feeding System
Roller Friction System
-
Counterfeit Detection
Magnetic, Infrared, Ultraviolet, and 3D.
-
Hopper Capacity
Max. 500 notes
-
Stacker Capacity
Max. 200 notes
-
Counting Speed
900 / 1100 / 1300 notes/min
-
Available Currencies
USD, EUR, LOCAL (OPTION)
-
Countable Note Size
60 X 85 X 0.08mm ~ 100 X 190 X 0.12mm
-
Display
2.8 Inch Graphic LCD
-
Power Supply
100 ~ 240V AC, 50/60Hz
-
Power Consumption
Max. 40W
-
Dimensions (mm)
285 (W) x 270 (D) x 280 (H)
-
Weight
7.2 kg
-
Interface
RS-232 X 1
USB X 1 -
Options
Remote Display
Thermal Printer
