NC-6500
Compact Two Pocket Fitness Sorter
COMPACT, YET POWERFUL
It is a cost-effective and low noise equipment specially designed for tellers.
Not only authenticate, but also process fitness sorting of counted banknotes. Capable of cheque scanning with the image processing technology. The all-in-one design makes all tedious operations in a snap.
Perfect for tellers when it comes to banknotes fitness handling.
|
|
|
|
|
|
FEATURES
-
Great Quality
Designed compact and elegant for human technology.
-
User Friendly
Non-stop continuous operation with error codes.
Use Software (End User Tool) to save and track each transaction by date, customers’ name, and serial number. -
Connectivity
Can be connected to printer or system through LAN; operator can print out serial numbers or all vital operating results of the processed banknotes.
Software upgrade could be done by PC, SD card, LAN. -
Efficient
Capable of sorting mixed banknote by denomination, fitness, orientation with fewer steps and shorter overall processing cycle.
-
Fitness
Sorting banknote by fitness or quality with its capability to detect folded corners, holes, soil, tears and tape as unfit notes.
-
Compact Design
Compact in size and avant-garde in appearance, smallest fitness sorter in the category.
-
Accurate

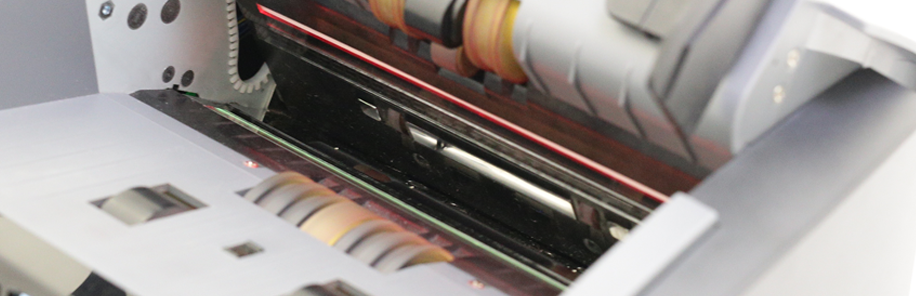

Counterfeit detection: MR, MG, CIS, UV, IR reflection and transmission, tape sensor.
-
Multi Currency
Capable of recognizing multi-currency based on character of each banknote.
-
Dual User
Two tellers share one machine with individual setting preferences
-

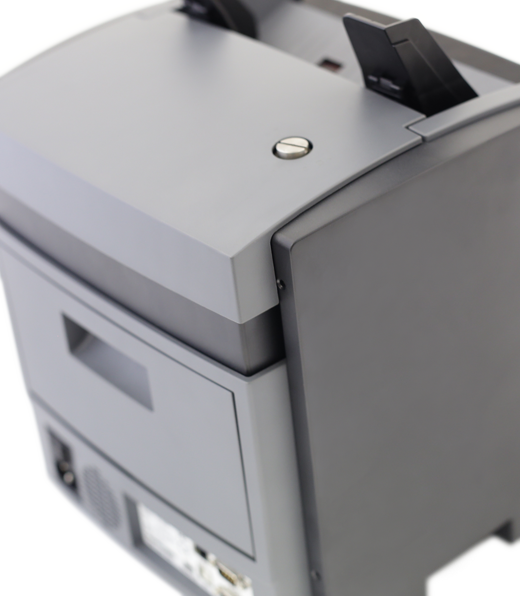

Easy Maintenance
Opening from top and rear bill path facilitates routine maintaining work.
SPECIFICATIONS
-
Hopper Capacity
Max. 500 notes
-
Feeding System
Roller Friction System
-
Stacker Capacity
Max. 200 notes
-
Reject Capacity
Up to 100 notes
-
Available Currencies
USD, EUR, GBP, LOCAL (OPTION), Up to 32.
-
Countable Note Size
60 X 85 X 0.08mm ~ 100 X 190 X 0.12mm
-
Display
3.5 Inch TFT LCD
-
Power Supply
100 ~ 240V AC, 50/60Hz
-
Power Consumption
Max. 50W
-
Dimensions (mm)
280 (W) x 272 (D) x 282 (H)
-
Weight
8.2 kg
-
Interface
LAN x1 RS-232 X 2 USB X 1 SD CARD X 1
-
Options
Remote Display
Thermal Printer -
Counting Speed
1100 Note/Min.(Piece Count)
900 Note/Min.(Denomination Count)
700 Note/Min.(Serial Number Count)
700 Note/Min.(Fitness Count) -
Counterfeit Detection
Dual CIS, Infrared reflection and transmission, Magnetic, Tape Sensor, Ultraviolet.
