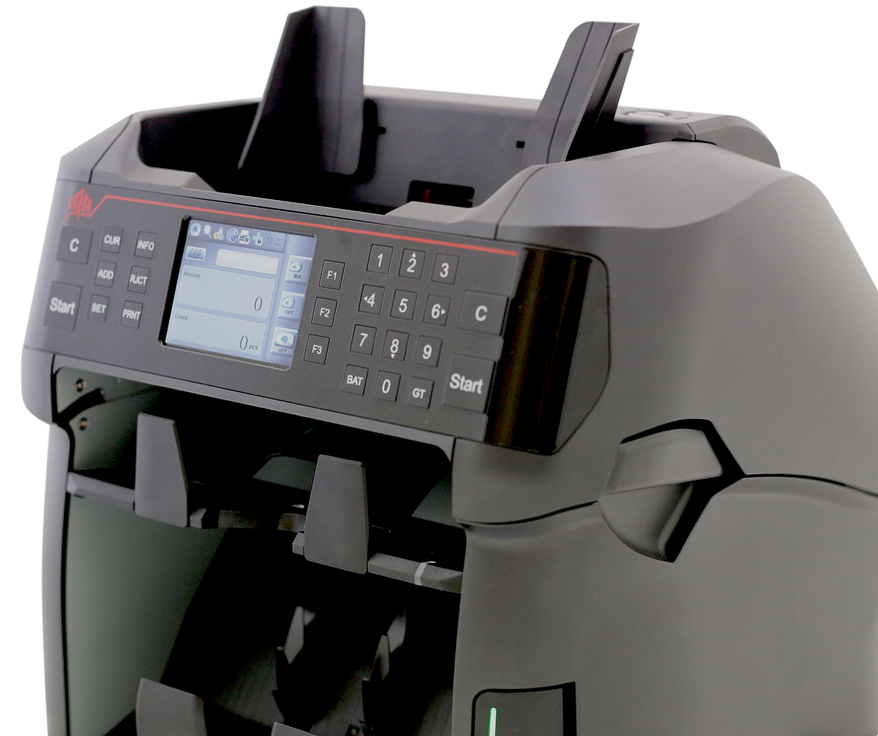

NC-7100
Two Pocket Fitness Sorter
EXCELLENCE THAT EXCEEDS YOUR EXPECTATION
NC7100 heavy duty 2-pocket fitness sorter designed to achieve growing demand for efficient cash management in back office processes.
Mechanical design with reliable sensor set provide cutting edge solution for back office processing that allow increase in efficiency and cost reduction.
|
|
|
|
|
|
FEATURES
-

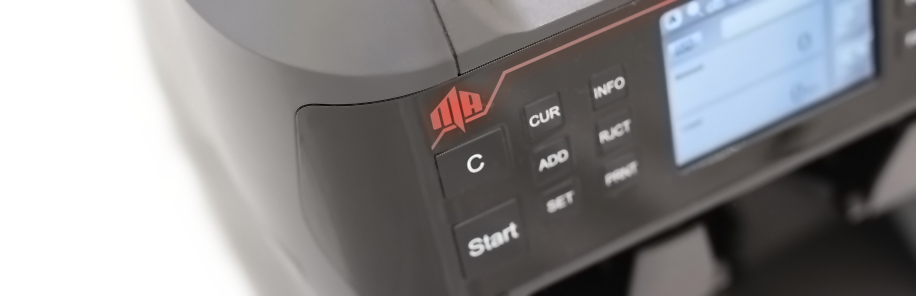

Color LCD Display
Color TFT LCD and full graphic user interface.
-
Connectivity
Can be connected to printer or system through LAN; operator can print out serial numbers or all vital operating results of the processed banknotes.
Software upgrade could be done by PC, SD card, LAN. -
Efficient
Capable of sorting mixed banknote by denomination, fitness, orientation with fewer steps and shorter overall processing cycle.
-
Fitness
Sorting banknote by fitness or quality with its capability to detect folded corners, holes, soil, tears and tape as unfit notes.
-
User Friendly
Non-stop continuous operation with error codes.
More than 7 ways of processing modes make easy and simple operation. -
Durable and Reliable
Designed and produced in Taiwan, renowned for effective and long-lasting products
-
Easy maintenance
Easy jam removing, you can clear note path with easy access even without standing.
-
Accurate
Counterfeit detection: MR, MG, CIS, UV, IR reflection and transmission, thickness sensor
-
Multi Currency
Capable of recognizing multicurrency based on character of each banknote.
-
Dual User
Two tellers share one machine with individual setting preferences
SPECIFICATIONS
-
Available Currencies
USD, EUR, GBP, LOCAL (OPTION), Up to 32.
-
Feeding System
Roller friction system
-
Denomination Detection
Contact Image Sensor.
-

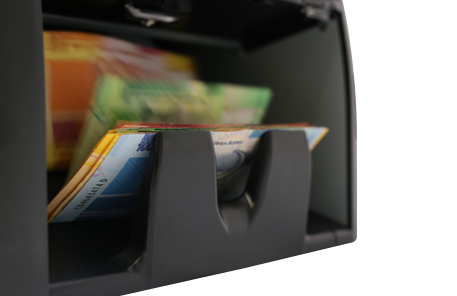

Hopper Capacity
500 notes (circulated notes)
-
Pocket Capacity
Main Pocket Capacity 250 notes (circulated notes)
Reject Pocket Capacity Max. 100 notes (circulated notes) -
Countable Note Size
60 X 85 X 0.08mm ~ 100 X 190 X 0.12mm
-
Display
3.5 Inch color TFT
-
Power Supply
100 ~ 240V AC, 50/60Hz
-
Power Consumption
Max. 150W
-
Dimensions (mm)
330(W) x 330 (D) x 350 (H)mm
-
Weight
Approx. 18 kg
-
Interface
LAN x1 RS-232 X 2 USB X 1 SD CARD X 1
-
Options
Remote Display
Thermal Printer -
Counting Speed
1500 Note/Min.(Piece Count)
1100 Note/Min.(Denomination Count)
1100 Note/Min.(Serial Number Count)
1100 Note/Min.(Fitness Count) -
Counterfeit Detection
Dual CIS, Infrared reflection and transmission, Magnetic, Thickness Sensor, Ultraviolet.
