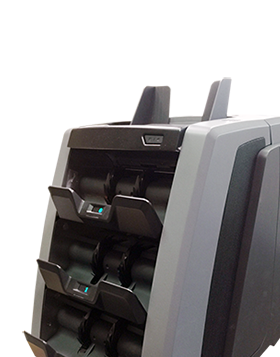

NC-8500
Three Pocket Fitness Sorter
COMPLEXITY TO SIMPLICITY
NC8500, the latest and most advanced model from MA, is the fastest fitness sorter in the group, featuring enhanced and reliable authentication / fitness sorting ability.
Built with wide range counterfeit detection capabilities, NC8500 stops counterfeits by using the most advanced counterfeit detection technology in the industry.
Three pocket design, assist user to process banknotes in the shortest time. With easy modes switching to fulfill all kind of cash handling process, it reduces workload with high speed and accuracy.
Supporting most of the currencies worldwide, and various possibilities for connectivity, satisfying the growing demand for more efficient cash management.
|
|
|
|
|
|
FEATURES
-
Fast
Extra pocket for less processing time, high speed processing.
-
Connectivity
Can be connected to printer or system through LAN; operator can print out serial numbers or all vital operating results of the processed banknotes.
Software upgrade could be done by PC, SD card, LAN -
Durable and Reliable
Designed for heavy duty usage and long lasting.
-
Efficient
Capable of sorting mixed banknote by denomination, fitness, orientation with fewer steps and shorter overall processing cycle
-
Fitness
Sorting banknote by fitness or quality with its capability to detect folded corners, holes, soil, tears and tape as unfit notes.
-
Dual User
Two tellers share one machine with individual setting preferences
-
Easy maintenance
Easy jam removing, you can clear note path with easy access.
-
Multi Currency
Capable of recognizing multicurrency based on character of each banknote.
-
User Friendly
Programmable processing modes make easy and simple operation.
-
Accurate
Counterfeit detection: MR, MG, CIS, UV, IR reflection and transmission, thickness sensor
SPECIFICATIONS
-
Feed System
Roller friction system
-
Available Currencies
USD, EUR, GBP, LOCAL (OPTION), Up to 12.
-
Hopper Capacity
500 notes (circulated notes)
-
Pocket Capacity
Stackers Capacity 250 notes (circulated notes)
Reject Pocket Capacity 250 notes (circulated notes) -
Countable Note Size
60 X 85 X 0.08mm ~ 100 X 190 X 0.12mm
-
Display
4.3 Inch color TFT
-
Power Supply
100 ~ 240V AC, 50/60Hz
-
Power Consumption
Max. 150W
-
Dimensions (mm)
345(W) x 445 (D) x 437 (H)mm
-
Weight
Approx. 30 kg
-
Interface
LAN x1 RS-232 X 2 USB X 1 SD CARD X 1
-
Options
Remote Display
Thermal Printer
VSI -
Counting Speed
1100 Note/Min.(Piece Count)
1000 Note/Min.(Denomination Count)
1000 Note/Min.(Serial Number Count)
1000 Note/Min.(Fitness Count) -
Counterfeit Detection
Dual CIS, Infrared reflection and transmission, Magnetic, Thickness Sensor, Ultraviolet.
