NC-9500
Multi-Pocket Fitness Sorter
RESTLESSLY IN SEARCH OF GREATER PERFORMANCE
NC9500is so far the most powerful fitness sorter in MA product portfolio, featuring expandable modular stacker design that comes with options of 200-note / 500-note capacity to process even more banknotes in one operation; plus enhanced and reliable banknote authentication and fitness-sorting.
Easy modes switching to fulfill all kind of cash handling process, it reduces workload with high speed and accuracyby using the most advanced counterfeit detection technology in the industry. Supporting most of the currencies worldwide, and various possibilities for connectivity, NC9500 satisfies the demand for large banknote handling environment.
|
|
|
|
|
|
FEATURES
-

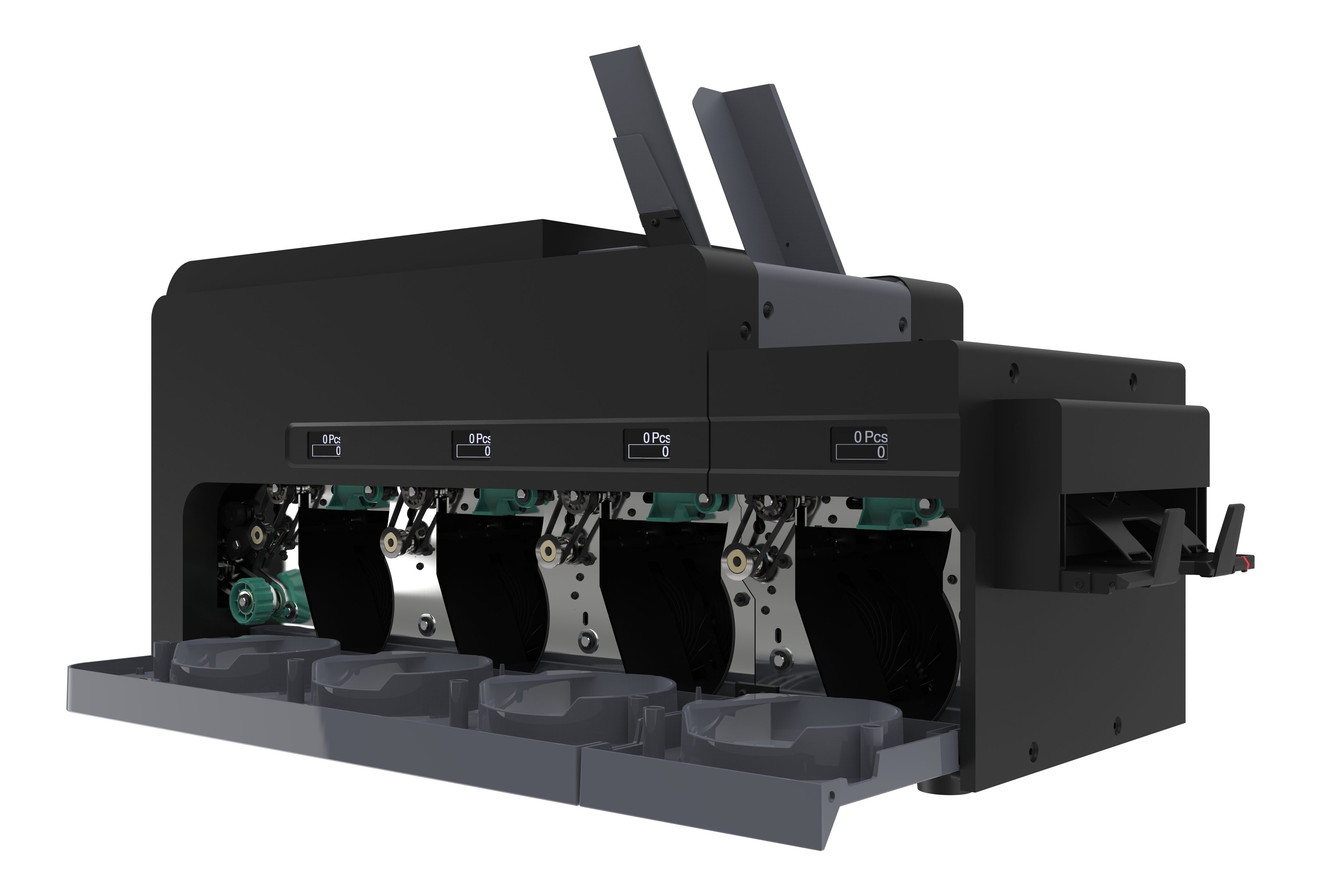

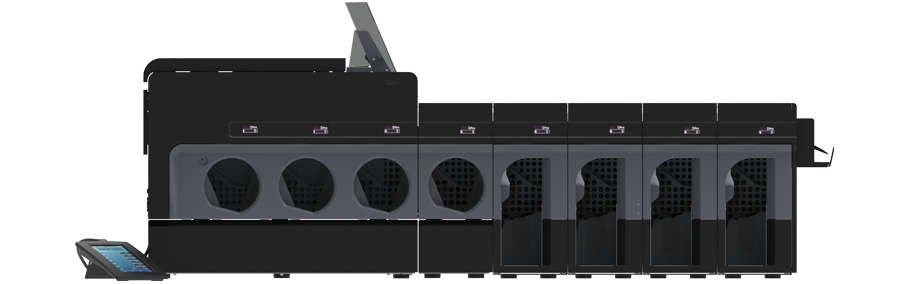

Expandable Up to 12 Stackers & 1 Reject
-
Individual Stacker Configuration
-
Built-in Dust Cleaning System
-
Efficient
Capable of sorting mixed banknote by denomination, fitness, orientation with fewer steps and shorter overall processing cycle
-
Multi Currency
Capable of recognizing multi currency based on character of each banknote.
-
Fitness
Sorting banknote by fitness or quality with its capability to detect folded corners, holes, soil, tears and tape as unfit notes.
-
Durable and Reliable
Designed for heavy duty usage and long lasting.
-

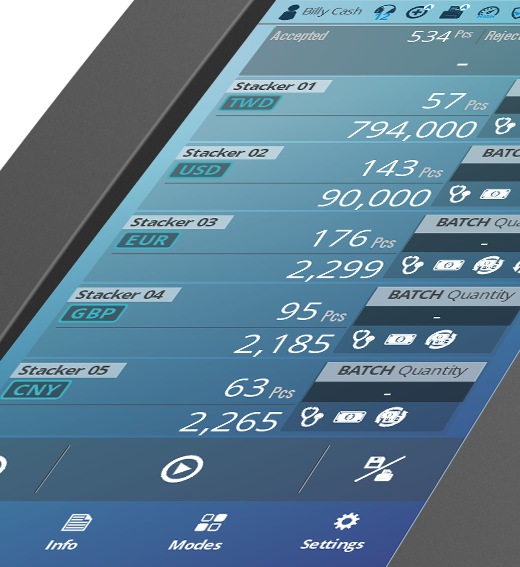

Touch Panel Display
-
Multi User
-
Connectivity
Can be connected to printer or system through LAN; operator can print out serial numbers or all vital operating results of the processed banknotes.
Software upgrade could be done by PC, SD card, LAN
SPECIFICATIONS
-
Feeding System
Friction Roller System
-
Sorting Modes
Count, Mix, Sort, Face, Orientation, Fitness, Emission
-
Counterfeit Detection
Visible Light, Infrared, Magnetic, Ultraviolet
-
Capacity
1000 Banknotes (Hopper)
200 Banknotes (Per Stacker, Main Unit)
200 / 500 Banknotes (Additional Stacker)
100 Banknotes (Reject Pocket) -
Sorting Speed
1000 Note/Min. (High)
900 Note/Min. (Mid)
750 Note/Min. (Low) -
Available Currencies
USD, EUR, GBP, LOCAL (Option)
Up to 32 currencies -
Countable Note Size
50 x 100 x 0.06mm ~ 90 x 185 x 0.12mm
-
Display
7” Touch Screen
-
Interface
LAN, RS232, USB, External Display
-
Power Supply
AC100V ~ 240V, 50/60Hz
-
Consumption
Max. 200W
-
Net Weight
Approx. 50Kg (Main Unit)
Approx. 7Kg (Additional Stacker 200-Note)
Approx.10.5Kg (Additional Stacker 500-Note) -
Dimension(mm)
Approx. 882 x 348 x 503 (Main Unit)
Approx. 882 x 348 x 130 (Main Unit Base)
Approx. 215 x 348 x 395 (Additional Stacker 500-Note)
Approx. 215 x 348 x 276 (Additional Stacker 200-Note)
Approx. 215 x 348 x 130 (Additional Stacker Base) -
Optional Features
S/N Scan, Cheque Scan, TITO
-
Max. Stacker Q'ty
Up to 16
