CASHIER Series
Smart Payment Kiosk
CONVENIENTLY LEADS YOUR BUSINESS TO EFFICIENT, ADVANCED & RELEVANT
CASHIER, a game-changing revolutionary kiosk
built from ground-up, innovated to respond to the
long-awaited demand from the whole retail industry.
The in-house developed software/ hardware/ app.
formed the fundamental elements to maximize the
flexibility and integration capability to your POS /
system, thoroughly improves the efficiency and
the overall work-flow at the meantime.

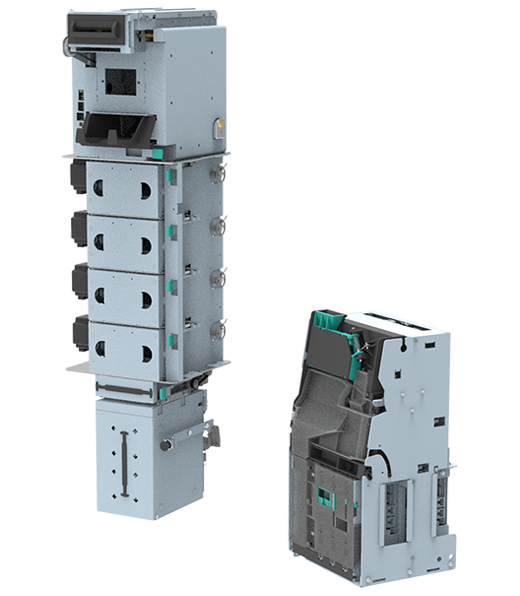

Thanks to the advanced and cutting edge cash
modules, CASHIER is able to perform banknote
recycling and as well as changing coins, all in one
kiosk at a perfectly ideal product footprint.
|
|
|
|
|
|
VIDEO
FEATURES
-
MOBILE CLIENT APP
Access to learn about the status of CASHIER right in your palm, any time, anywhere.
-
INTEGRATABLE
Individual APIs are available, simply choose one to suit both your system and work-flow.
-
INCREASE REVENUE
All day revenue stream, utilizes personnel effectively and reachout to customers to improve loyalty.
-
INNOVATIVE

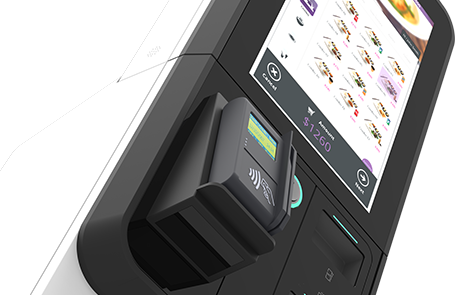

Banknotes, coins, credit cards or mobile payment, one unit provide them all !
-
USER-FRIENDLY
Multi-lingual UI configurable, and multi-currency capability, speeds up the unnecessary queue.
-
CLOUD SOLUTION
All transactions are uploaded to MA's Cloud Solution, including currency, amount, denominations.
-
COST-EFFECTIVE
Eliminates counting error by hand, lower reconciliation effort and also reduces labor costs.
SPECIFICATIONS
-
Feed System
User : Single Note/Coin Feeding
Retailer : Note Bulk-Fedding Module - 200 npm
Coin Bulk-Feeding Module - 200 cpm -
Available Currencies
Local+Optional (USO, EUR, GBP, CNY and so on)
-
Counterfeit Detection
Visible Light
Infrared
Magnetic -
Capacity
Notes : 70 notes/Drum
600 notes (Cassette)
10 notes (Reject Tray)
Coins : 80~75 pcs/Tube -
Countable Note Size
50 x 100 x 0.06mm ~ 86x 185x 0.12mm
-
Countable Coin Size
Diameter : 17mm~32mm
Thickness: 1 .3mm~3.5mm -
Display
21.5" Touch Screen
-
Client Printer
Thermal
Paper Width : 58mm
Paper Width : 80mm (Optional) -
Interface
LAN,WIFI, 4G (Optional)
-
Power Supply
AC100V ~ 240V, 60/50Hz
-
Consumption
Max. 200W
-

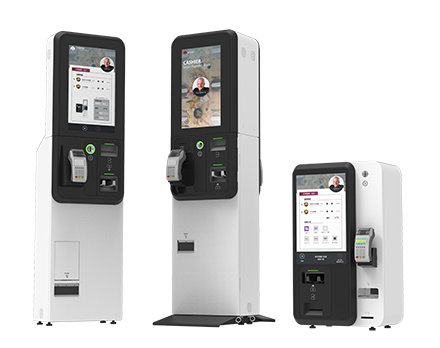

Dimension
Floor Type : 305x450x1700mm
Desktop : 345x520x906mm
Duo : 350x450x1730mm (base: 685mm)
Cashless : 141x370x880mm -
Net Weight
Floor Type : 95Kg
Dua l : 103Kg
Desktop : 95 Kg
Cashless : 25Kg
