CASHPoint Series
Notes & Coins Recycle Modules
EXPERTISING YOUR SOLUTIONS TO BOOST ITS PERFORMANCE
CASHPoint is a full portfolio that features a cutting-edge performance, fast and reliable cash recycling, to ensure all transactions are completed in a way that meets customer's satisfactory and at the same time operation flow optimized.
FITNESS SORTING
With the capability to sorting unfit notes, CASHPoint accepts those notes and store in its cassette instead of recycles to circulation again (if needed by regulation, thanks to MA's image processing performed by the advanced sensors technology.

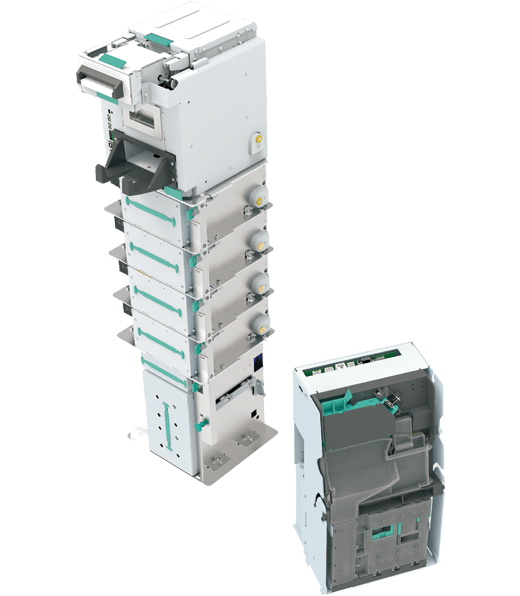

MODULAR DESIGN
The modular designed recycler drums makes the service work efficient, fast and easy at the same time.
MULTI-CURRENCY
CASHPoint supports up to 109 currencies, it is also configurable to accept multi currency in one.
|
|
|
|
|
|
VIDEO
FEATURES
-
INTEGRATABLE
Individual SDK are available
-
INNOVATIVE

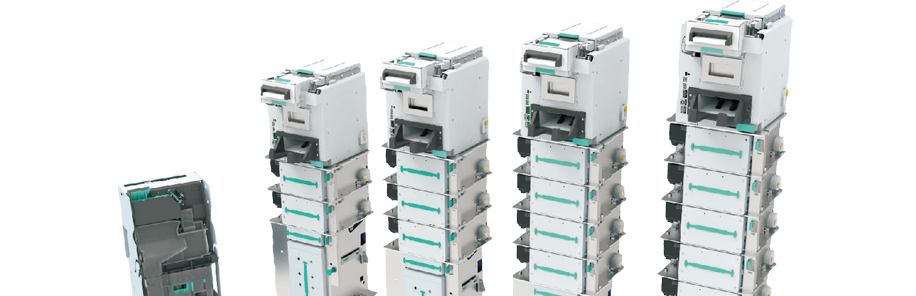

Choose the configuration that fits your demand
-
COST-EFFECTIVE
Eliminates counting error by hand, lower reconciliation effort and also reduces labor costs.
SPECIFICATIONS
-
Feed System
Single Note/Coin Feeding
Coin Bundle-Feeding - 200 cpm -
Processing Speed
Notes : 4 /sec.
Coins : 2 /sec. -
Note Insertion Direction
4 Ways
-
Note Escrow
Configurable
-
Available Currencies
Local
( USD, EUR, GBP, CNY, JPY and so on) -
Counterfeit Detection
MA Sensor Set
-
Capacity
Notes : 70 notes/Drum
600 notes(Cassette)
10 notes(Reject Tray)
Coins : 75~80 pcs/Tube -
Countable Note Size
50 x 100 x 0.06mm ~ 86 x 185 x 0.12mm
-
Countable Coin Size
Diameter : ø17mm~ø32mm
Thickness : 1.3mm~3.5mm -
Interface
Banknote Module : RJ45
Coin Module : RS232 -
Protocols
SDK
-
Power Supply
DC12V & 24V
