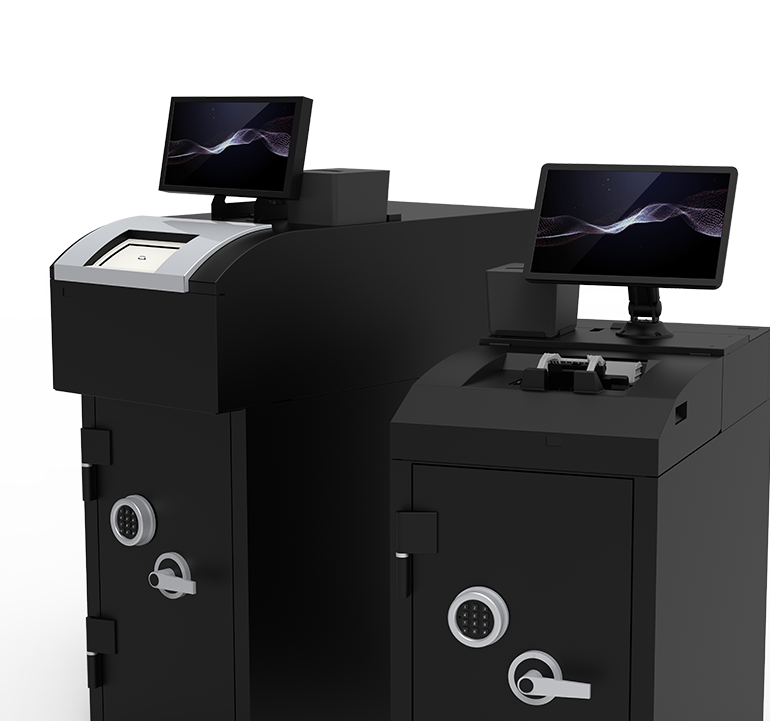

RAY Ultra | RAY Maxi
Cash Recycler Series
The Solution That Significantly Smoothen the Efficiency for Cash Management
It's time to unveil a new generation of cash recycler
that perfectly decreases the time spent on cash handle for retailers.
Satisfies the retailers with the versatile and advanced
technology built reliable solution, which remarkably
speeds up the cash transactions, from start/end of
day to CIT pickups, 24/7 monitored and secured to
optimize retail business operations.
By removing the burdens of manpower invested to eliminate discrepancy and time for the complex accounting process. MA's RAY Cash Recycler Series allow retailers
to focus more on the operation, that brings good customer experience and of course the sales.
|
|
|
|
|
|
VIDEO
FEATURES
-

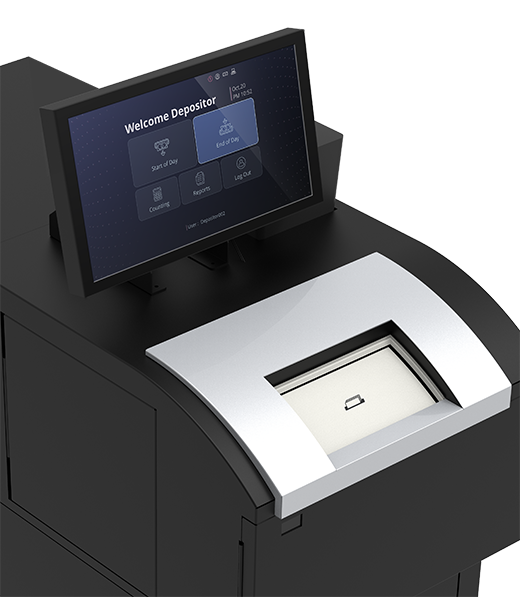

User Friendly
GUI interface with
touch screen display -
Unlimited Connection
Connect as many
as units desired -
Fast
Latest technology
applied in deposit
system -
Interface Protocol
SOAP over HTTP(S),
easy to integrate -
Database
Microsoft SQL server or
SQL server express -
Convenient
Mixed denomination
banknotes handling -
Safe
Strong Box
-
Integrated
All info are gathered
to cloud -
Efficient
Real time updated
direct depositing
software
SPECIFICATIONS
-
Max. No.of Cassettes
5
-
Display
15.5” FHD Touch Screen
-
Barcode Reader
Standard : 1D scanner
Optional : 2D scanner -
Client Printer
Thermal 80mm
-
Interface
LAN
-
Optional Accessories
RFID Card Reader
Finger Print Reader
CEN III / CEN IV Safe -
Power Supply
AC100V~240V, 50/60Hz
-
Consumption
Max. 500W (RAY Ultra)
Max. 800W (RAY Maxi) -
Dimensions (mm)
RAY Ultra:
L976 W475 H1220 (w/ screen)
L976 W475 H890 (w/out screen)
RAY Maxi:
L976 W475 H1250 (w/ screen)
L976 W475 H879 (w/out screen) -
Banknotes Handling
Countable Note Size:
Long Edge: 120mm ~ 160mm
Short Edge: 60mm ~ 85mm
Speed of Deposit:
Apprx. 330 Notes / Min.(RAY Ultra)
Apprx. 220 Notes / Min.(RAY Maxi)
Speed of Dispense:
Apprx. 300 Notes / Min.(RAY Ultra)
Apprx. 200 Notes / Min.(RAY Maxi) -
Capacity
RAY Ultra:
Max. 300 Notes (Hopper)
Max. 100 Notes (Dispense)
Max. 3000 Notes (Cassette)
Upp.: Apprx. 450 Notes
Low.: Apprx. 1800 Notes
(Dual Compartment Cassette)RAY Maxi:
Max. 300 Notes (Hopper)
Max. 300 Notes (Dispense)
Max. 3000 Notes (Cassette)
Max. 3000 Notes (RJC Cassette)
300 (Utility Box)
