NC-7500
Heavy Duty 2-Pocket Fitness Sorter
Excellence that exceeds your expectation
NC7500 heavy duty 2-pocket fitness sorter designed to achieve growing demand for efficient cash management
in back office processes.
Mechanical design with reliable sensor set provide cutting edge solution for back office processing that allow increase in efficiency and cost reduction.
|
|
|
|
|
|
VIDEO
FEATURES
-
User Friendly
Non-stop continuous operation with error codes.
More than 7 ways of processing modes make easy and simple operation. -
Fast
Extra pocket for less processing time, high speed processing.
-

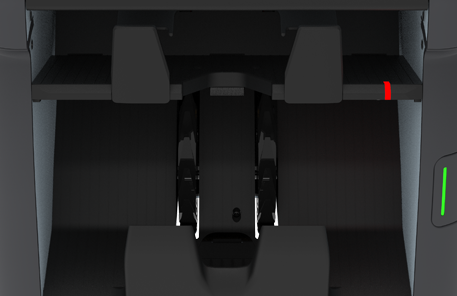

Easy maintenance
Easy jam removing, you can clear note path with easy access even without standing.
-
Accurate
Counterfeit detection: MR, MG, CIS, UV, IR reflection and transmission, thickness sensor
-
Fitness
Sorting banknote by fitness or quality with its capability to detect folded corners, holes, soil, tears and tape as unfit notes.
-
Efficient
Capable of sorting mixed banknote by denomination, fitness, orientation with fewer steps and shorter overall processing cycle
-
Multi Currency
Capable of recognizing multicurrency based on character of each banknote.
-
Durable and Reliable
Designed for heavy duty usage and long lasting.
-
Connectivity
Can be connected to printer or system through LAN; operator can print out serial numbers or all vital operating results of the processed banknotes.
Software upgrade could be done remotely by PC, USB Stick, LAN
SPECIFICATIONS
-
Feed System
Roller Friction System
-
Counterfeit Detection
Dual CIS (IR Reflection & Transmission)
Magnetic
Tape Sensor
Ultra Violet -
Counting Speed
1600 Note/Min. (Piece Count)
1600 Note/Min. (Denomination Count)
1200 Note/Min. (Serial Number Count)
1200 Note/Min. (Fitness Count) -
Available Currencies
USD, EUR, GBP, Local (Optional)
Up to 32 -
Capacity
500 Circulated Banknotes (Hopper)
250 Banknotes (Pocket)
100 Banknotes (Reject) -
Countable Note Size
60 x 85 x 0.08mm~100 x 190 x 0.12mm
-

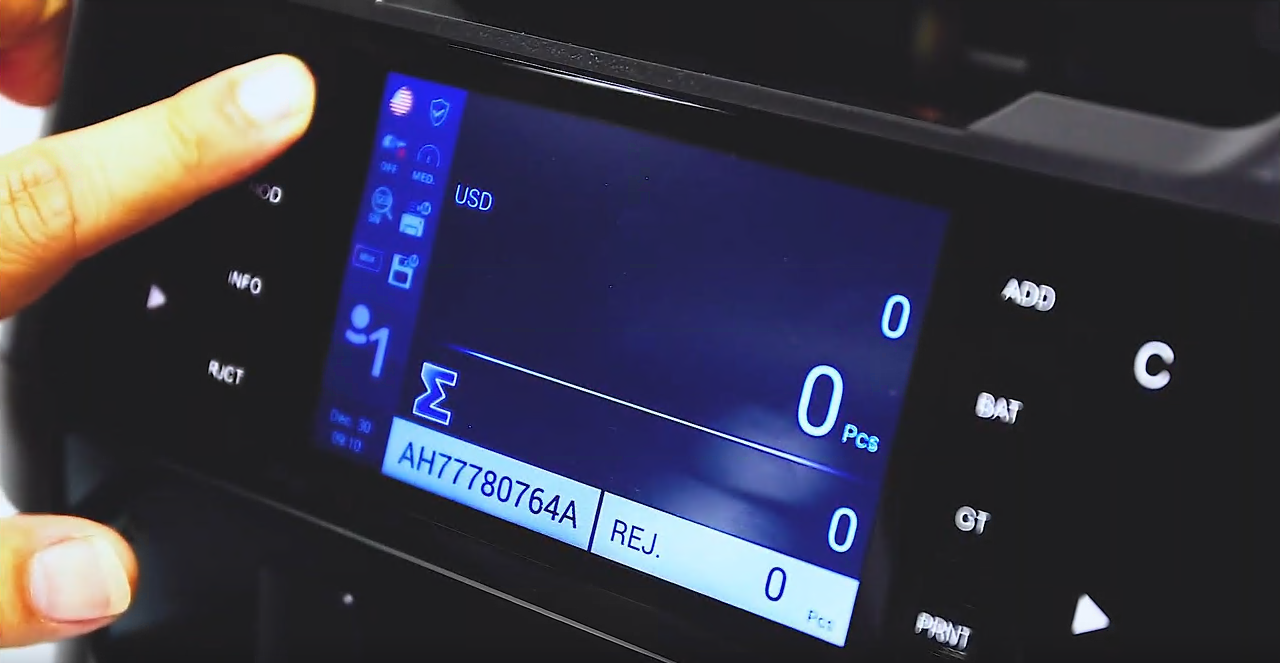

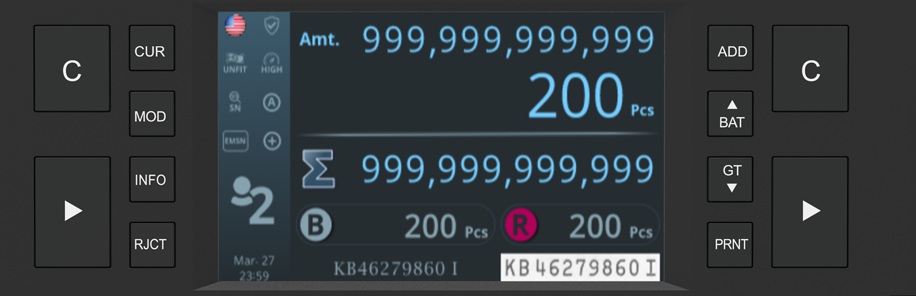

Display
5" LCD Touch Display
-
Interface
LAN x 1
RS-232 x 2
Mini USB x 1
USB-A x 1 -
Options
Remote Display
Thermal Printer
MICR Recognition -
Power Supply
AC100V ~ 240V, 50/60Hz
-
Consumption
Max. 150W
-
Dimension
12.9" x 12.9" x 13.7"
330 x 330 x 350 mm -
Net Weight
39.6 lbs.
18 kg
