CDS Square
Cash Deposit & Recycler System
Flexible, Secured and
Easy Cash Management
Solution Built to Optimize
Cash Handling for Retail

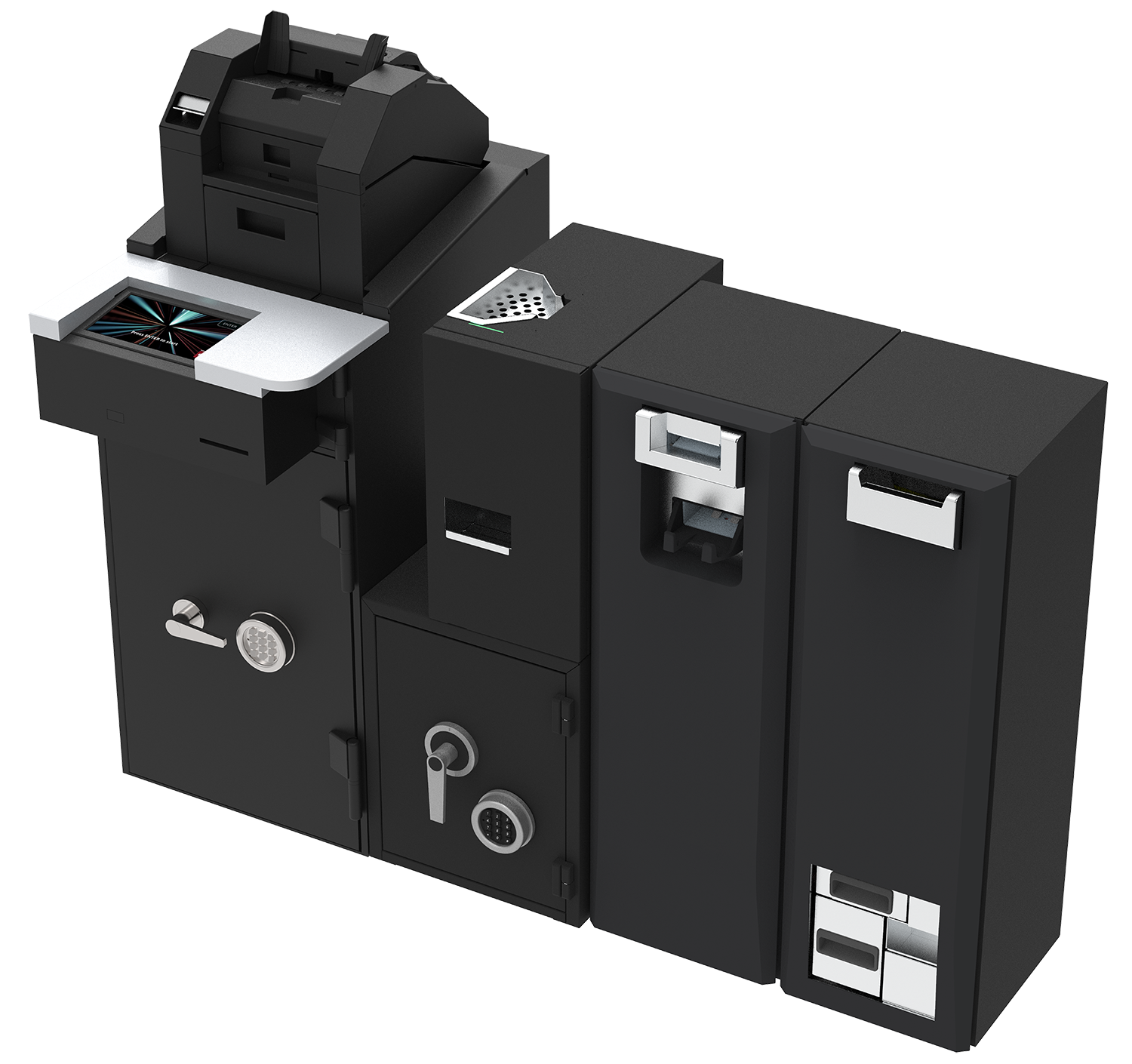

Meet CDS2, the newest concept to enhance the versatility of MA's iconic CDS product line; which consists both depositing and recycling modules for both notes and coins.
Delivering excellent and reliable performance, visibility and control of cash
inventory to satisfy the retailers with cutting-edge technology, which remarkably accelerates the cash transactions, from start/end of shift and day to CIT
pickups, 24/7 monitored and secured to optimize retail business operations.
Automating the cash handling adds a digital
record of transactions throughout the whole
process, to reduce risks of exposing cash
and robust the efficiency.
|
|
|
|
|
|
FEATURES
-
Unlimited Connection
Connect as many
as units desired -
Database
Microsoft SQL server or
SQL server express -
Convenient
Mixed denomination
banknotes handling -
User Friendly
GUI interface with
touch screen display -
Fast
Latest technology
applied in deposit
system -
Safe
Strong Box
-
Integrated
All info are gathered
to cloud -
Efficient
Real time updated
direct depositing
software -
Interface Protocol
SOAP over HTTP(S),
easy to integrate
SPECIFICATIONS
-
Capacity
Hopper : 30 Note / 100 Coins
Note Escrow : 70 Notes Configurable
Storage : 880 Notes (4 Drums + 1 Cassette) / 800 Coins (10 Tubes)
Reject : 10 Notes / 50 Coins -
Processing Speed (Per Min.)
200 Notes / 120 Coins
-
Countable Size
Notes : 50 x 100 x 0.06mm ~ 86 x 185 x 0.12mm
Coins : Diameter : ø17mm~ø32mm；Thickness : 1.3mm~3.5mm -
Display
LED Indicator
-
Features
Counterfeit Detection : Notes / Coins
Fitness Sorting : Notes
Processing Method : Recycling Notes / Coins -
Security Level Options
Safe : Strong Box
Lock : Solenoid Lock -
Dimensions(mm)
330(W) x 385(D) x1020(H)
-
Power Supply
AC100V~240V, 50/60HZ
