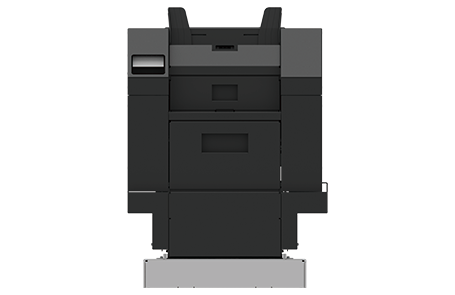

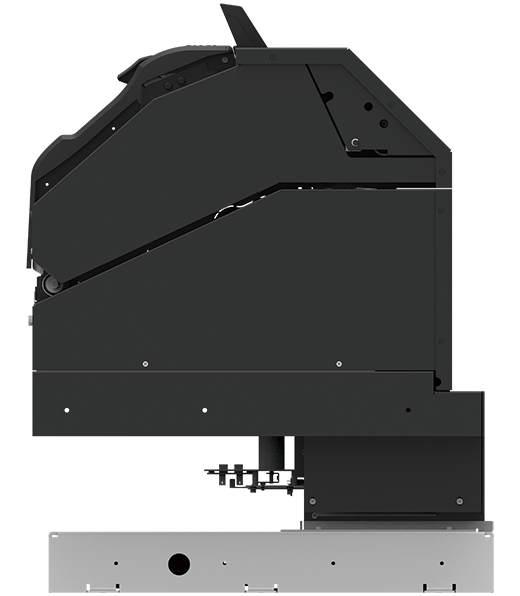

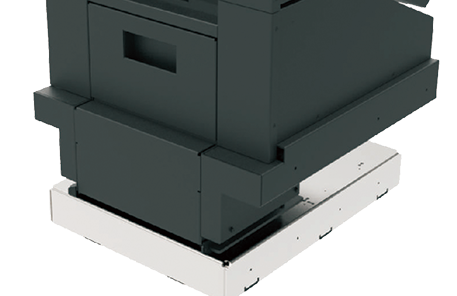

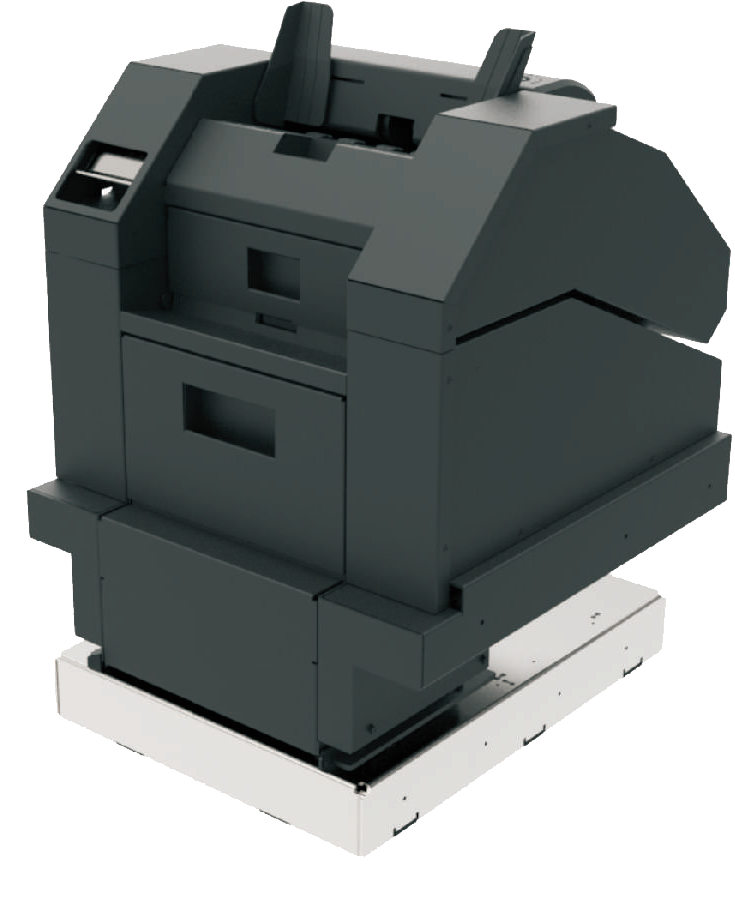

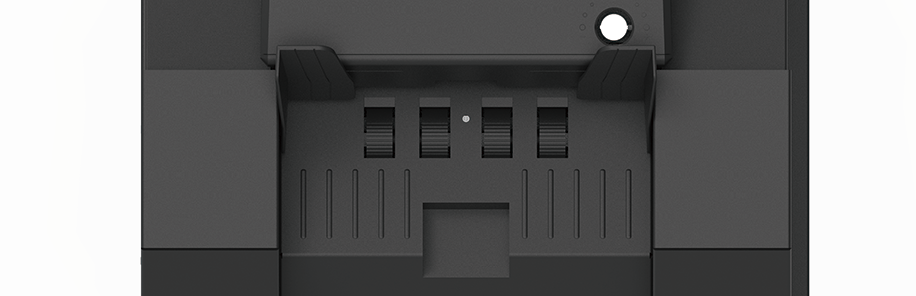

NC71CDS
OEM Banknote Validator
Powerful companion to
your cash-in solutions
From the strong and solid foundation of MA technology, NC71 CDS is capable of validate different currencies and denominations of banknotes fast, efficient and precise. Setting up the benchmark to an even higher level, proven by thousands of MA Cash Deposit Systems deployed worldwide that secures cash and significantly optimized retailers'daily cash-in processing time.
NC71 CDS is ideal for heavy-duty sites that handles over 10000 notes per week. Various of adaptations available that will keep updating with new emissions of notes, and the best part of it : all by remote. Everything is designed according to perfection.
|
|
|
|
|
|
FEATURES
SPECIFICATIONS
-
Detection
Banknote Authentication
Banknote SN Reading -
Currencies
109 available, max, 32/unit
-
Capacity
Hopper : 500 Banknotes
Escrow : 400 Banknotes
Reject Pocket : 1 00 Banknotes -
Deposit Speed
1000 Note/Min
-
Countable Note Size
60 x 85 x 0.08mm ~ 100 x 190 x 0.12mm
-
Interface
LAN
-
Power Supply
DC12V, DC24V
-
Consumption
25W
-
Dimension
430 X 387 X 540 mm
-
Net Weight
39kg
