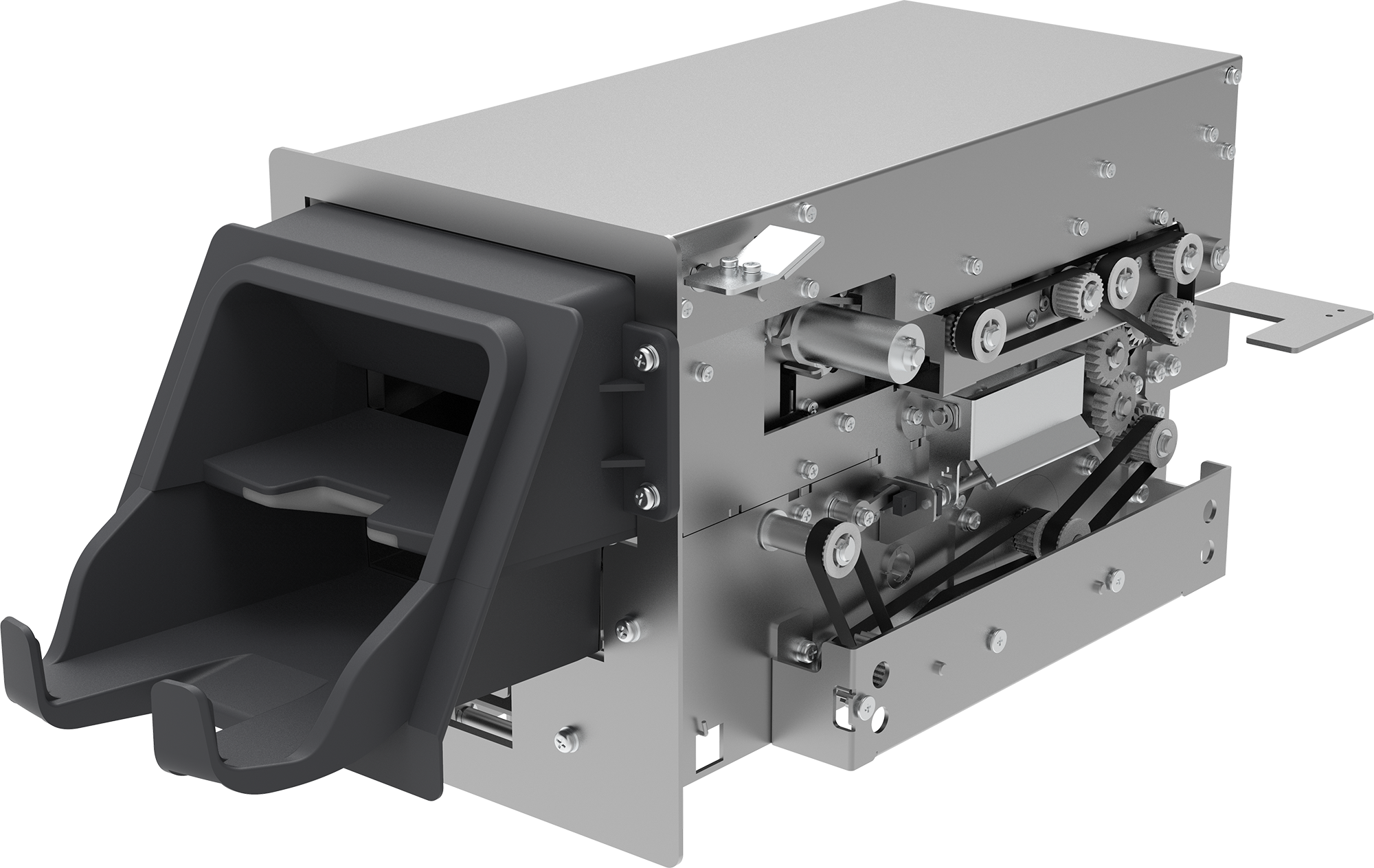

SPARK
OEM Banknote Validator
Discover the perfect harmony of performance and quality
SPARK OEM Module is design to fit into the key position
of compact size smart safes, to play a critical role when it cash automation ecosystem, significantly accelerates the time spent on counting banknotes and at the same time validating. The risk of cash shrinkage can be massively reduced and optimizes the cash handling operation to a whole new level.
All these wouldn't be possible without MA's very own sensor array, which easy gets the job done with a decent speed.
|
|
|
|
|
|
FEATURES
SPECIFICATIONS
-
Detection
Banknote Authentication
Banknote SN Reading -
Currencies
109 available, max. 32/unit
-
Capacity
Hopper : 50 Banknotes
Reject Pocket : 30 Banknotes -
Deposit Speed
180 Note/Min
-
Countable Note Size
60 X 86 X 0.08mm ~ 86 X 190 X 0.12mm
-
Interface
LAN
-
Power Supply
DC12V, DC24V
-
Consumption
25W
-
Dimension
446 X 173 X 182 mm
-
Net Weight
6.7kg
